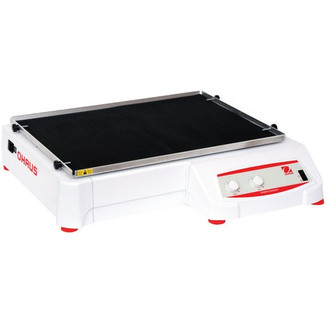

OHAUS SHHD1619AL Analog 19mm Orbital Shaker
The OHAUS SHHD1619AL Shaker offers robust analog control for shaking speed and time via control adjustment knobs. The variable speed, microprocessor control provides consistent, uniform orbiting action. Built of cold rolled steel, this shaker can handle weights up to 35 lbs.
Safety features include speed ramping which helps provide liquid splashing and overload protection. The spill-resistant design channels liquids away from internal components. The brushless DC motor features permanently lubricated ball bearings for maintenance-free triple eccentric drive.
Each Incubating Digital Rocker is provided with power cord and plug. Also comes with a 18 x 24" non-skid rubber mat. Accessories are sold separately and listed under the accessories tab.
Features
- Microprocessor control ensures consistent repeatable results
- Weight Range: Up to 50lbs
- Independent adjustment knobs for speed and time
- Speed ramping helps prevent spilling
- Adjustable 25-500 RPM speed range
- 18.0 x 24" tray size
- Applications: Bacterial suspensions, staining/destaining, and general mixing.
Specifications
Motion | Orbital 25 mm |
Capacity | Up to 50lbs (22.7kg) |
Tray Size | 18 × 24" (45.7 × 61 cm) |
Control | Analog Adjustable Knobs |
Display | Analog Knobs |
Timer | 1 minute to 120 minutes, or continuous mode |
Drive System | Triple Eccentric Brushless DC motor |
Speed Range | 25-500 RPM |
Speed Accuracy | ±1 rpm, Above 100 rpm ±1% of set speed |
Dimensions (LxWxH) | 24.0 × 26.7 × 5.9" (61.0 × 67.8 × 14.9 cm) |
Construction | Cold Rolled Steel |
Tray Material | Aluminum |
Power | 120V, 5A, 50/60Hz |
Power Consumption | 75 W |
Safety Certification | TUV |
Working Environment | 32°F – 104°F, 80%RH, non-condensing |
Weight | 48.1lbs (21.8kg) |
Ordering Info | OHAUS 30391835 |
