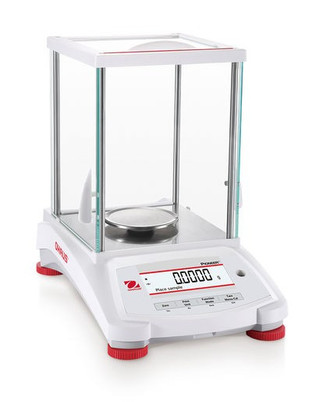

OHAUS PX84 Pioneer Analytical Balance
Pioneer PX series analytical balances provide exceptional performance, durability and versatility all in one affordable package. They are ideally suited for laboratories, universities and applied science applications that require accurate and repeatable measurements.
The Pioneer PX analytical balances feature an integrated grounding bar that removes static, further improving weighing results. A large backlit dual-line LCD display simplifies user operation with on-screen prompts and information. RS-232 and USB interface are standard allowing convenient communication with peripheral devices such as printers and PCs. Durability in mind, Pioneer PX balances are constructed with a die-cast metal base, stainless steel weighing pan and an ABS plastic housing.
Features
- Large dual-line backlit LCD display shows additional information and user prompts
- Integrated grounding rod removes static electricity to improve weighing results
- Durable design with die-cast metal base, ABS plastic housing and stainless steel pan
- Standard RS-232 and USB interface for connection to PCs, printers and other devices
- Provides exceptional performance at an affordable price
- Perfect for use in laboratories, universities and industrial processes
- Semi-automatic internal calibration via menu
- Real Time Clock with GLP/GMP printable data
- Overload, underload and stability indicator
- User-selectable environmental filters
- Integrated hook for below balance weighing
- Brightness, auto-tare and auto-dim settings
- Removable glass draft shield and weighing pan
- Four operating languages
Specifications
| Capacity | 84 g |
| Readability | 0.0001 g / 0.1 mg |
| Repeatability | 0.0001 g |
| Linearity | ± 0.0002 g |
| Calibration | Semi-automatic internal calibration; Menu selectable |
| Stabilization Time | ~ 4 seconds |
| Minimum Weight | 82 mg |
| Minimum Weight (USP, 0.1%, typical) | 200 mg |
| Units | Milligram, Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Ounce Troy, Grain, Newton, Hong Kong Tael, Singapore Tael, Taiwan Tael, Momme, Tical (MM), Mesghal, Tola (India), 1 custom unit |
| Weighing Applications | Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination |
| Pan Size | 3.54 in. / 90 mm Ø |
| Display | 2 line LCD with backlight |
| Draft Shield Size | 6.8 × 5.2 × 8.1 in. / 172 × 131 × 205 mm |
| Power Supply | Power Input: 100–240V ~ 200mA 50–60Hz 12–18VA Power Output: 12 VDC 0.5A |
| Dimensions | 8.2 × 12.6 × 12.2 in. / 209 × 321 × 309 mm |
| Operating Conditions | 50 °F to 86 °F / 10 °C to 30 °C |
| Net Weight | 10 lb / 4.5 kg |
| Warranty | 2 year manufacturer's |
| Manufacturer | OHAUS |
| Item Number | 30429837 |
| Model Number | PX84 |
| Compliance | Product Safety: IEC/EN 61010-1; CAN/CSA C22.2 61010-1; UL 61010-1 Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic Environments; FCC Part 15 Class A; Canada ICES-003 Class A Compliance Marks: CSA |
