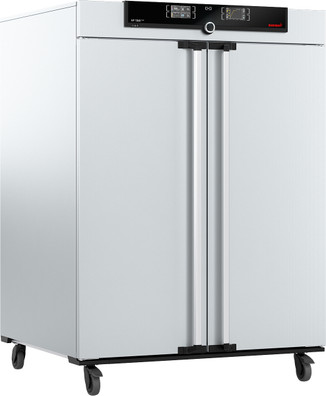

Memmert UF series advanced forced air ovens set the standard for performance, precision and quality. Engineered and manufactured in Germany, Memmert lab ovens provide an exceptional temperature control solution for science, research and material testing applications. They feature full stainless steel construction, PID-microprocessor control, intuitive TFT color twin-displays and industry-leading safety features. Memmert ovens are hygienic, constructed from stainless steel inside and out, and are easy-to-clean.
Performance
- Forced air circulation, adjustable in 10% steps
- 0.1°C temperature setting resolution up to 99.9°C, 0.5°C from 100°C and up
- 2 x PT100 temperature sensors, DIN class A, for dual monitoring
- AtmoCONTROL software for managing and transferring programs
- Temperature display in Celsius or Fahrenheit
- Programmable wait/on setpoint (process does not start until target temp is reached)
- Supports multiple languages
- 3-point temperature calibration
Design Features
- Dual high-definition TFT color displays (TwinDISPLAY) with PID microprocessor controller
- Textured stainless steel exterior and stainless steel chamber construction
- Insulated stainless steel door with 2-point locking
- 2 x Stainless steel grid shelves
- Chamber is hygienic and easy-to-clean
- CE, UL Listed
Safety
- Adjustable overtemperature monitoring and mechanical temperature limiter, protection class 1, DIN 12880
- AutoSAFETY automatically adjusts temperature set value within tolerance range
- Min/Max temperature settings for over/undertemperature detection
class 2, selectable on display - Auto-diagnostic fault detection system
- Visual and acoustic alarms
Calibration
- Calibration certificate included with incubator (calibrated at 160°C)
3 year manufacturer's warranty
- Chamber Volume:
- 1060 L
- Temperature Setting Range:
- 20°C to 300°C
- Temperature Accuracy:
- 0.1°C up to 99.9°C, 0.5°C from 100°C and up
- Temperature Sensor:
- 2 x Pt100 sensors, DIN Class A, dual monitoring
- Convection:
- Forced air convection, adjustable in 10% steps
- Chamber Dimensions (W x H x D):
- 40.9 x 47.2 x 33.5 in.
- Exterior Dimensions (W x H x D):
- 48.2 x 67.7 x 40.7 in.
- Control:
- PID-microprocessor control with 2 high-definition TFT color display (TwinDISPLAY)
- Software:
- AtmoCONTROL software on a USB stick for programming, managing and transferring programs
- Communication:
- Ethernet, USB
- Programmable Settings:
- Temperature (Celsius or Fahrenheit), fan speed, air flap position, timer
- Timer:
- 1 min. to 99 days
- Languages:
- English, German, Spanish, French, Polish, Czech, Hungarian
- AutoSAFETY:
- Auto over/under temperature monitor using setpoint value and tolerance, visual and acoustic alarm, heat switched off at overtemperature
- Calibration:
- 3 selectable temperature values
- Ventilation:
- Fresh air electronically adjustable air flap
- Construction:
- Stainless steel chamber and textured stainless steel housing
- Door:
- Stainless steel and fully insulated with 2-point locking
- Shelves:
- Includes 2 stainless steel grid shelves (maximum 14)
- Weight:
- 556 lbs
- Power:
- 208 V, 3 phases, w/o neutral, 50/60 Hz, 5700 W, 15.9 A
- Working Environment:
- 5°C to 40°C, Max. humidity 80%, non-condensing
- Manufacturer:
- Memmert
- Country of Origin:
- Germany
- Model:
- UF1060plus
- Product Type:
- Oven
