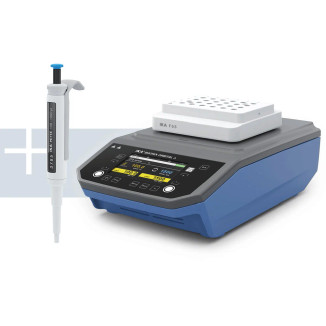

The IKA MATRIX Orbital Delta F0.5 mixes and heats with a fixed insert for 24 x 0.5 ml tubes. This thermal shaker is a powerful mixer for blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – even the smallest volumes mix reliably and completely. No cross-contamination and an optimal mixing result! The
IKA MATRIX Orbital Delta F0.5 includes an IKA PETTE vario 100-1000ul pipette.
Features
- Large and clear display with a convenient menu structure allows for intuitive operation
- Stable quick lock for fast and easy change of blocks
- Automatic blocks detection
- Speeds of up to 2,000 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
- Programmable ramps allow for automatic execution of mixing and heating tasks
- Smart speed adjustment according to block and filling volume
- Aluminum die cast housing ensures excellent stability
Included
- MATRIX Orbital Delta F0.5
- IKA PETTE vario 100-1000 µl
3 year manufacturer's warranty with product registration (2 year standard)
- Type of Movement:
- Orbital
- Shaking Stroke:
- 3 mm
- Permissible Shaking Weight:
- 0.3 kg
- Permissible ON time:
- 100 %
- Speed Range:
- 300 - 2000 rpm
- Speed Adjustment:
- 10 rpm steps
- Display:
- TFT
- Timer:
- Yes
- Timer Setting Range:
- 1 s - 6000 min
- Operating Modes:
- Timer, continuous and program operation
- Capacity:
- 24 x 0.5 ml
- Heating Temperature Range:
- Room temp. +4° - 100 °C
- Heat Output:
- 100 W
- Heat Control:
- TFT
- Set Temperature Resolution:
- ±1 °C
- Temperature Control Accuracy:
- ±0.5 °C
- Temperature Stability:
- 0.5 °C
- Temperature Homogenity:
- ±0.5 @ 20°C -45°C, ±1.5 °C
- Heating Rate:
- 15°C/min
- RS 232 Interface:
- Yes
- USB Interface:
- Yes
- Protection Class DIN EN 60529:
- IP 21
- Power:
- 100 - 240 V, 50/60 Hz, 240 W
- Working Environment:
- 5 - 40 °C, Relative Humidity 80%
- Dimensions (W x H x D):
- 216 x 149 x 351 mm
- Weight:
- 9.2 kg
- Manufacturer:
- IKA
- Model:
- MATRIX Orbital Delta F0.5
- Item No.:
- 10006513
- Product Type:
- Thermoshaker
