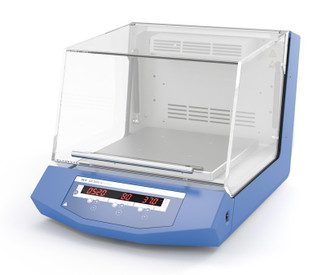

IKA KS 3000 ic Control Incubator Shaker with Cooling Coil
The IKA KS 3000 ic control incubator shaker with cooling coil features a compact design that is loaded with features, safely allows unattended operations, and has available a comprehensive selection of attachments and accessories that fit most types of sample containers.
The KS 3000 ic control unit has a built in cooling coil that allows for connection to an external cooling unit. Speed, time, and temperature parameters can be set using the large LED display or remotely using the labworldsoft ® software. Integrated PID temperature controls ensure reliable and accurate temperature settings. IKA always keeps safety in mind. The KS series incubators stop automatically when the hood is lifted.
IKA KS 3000 ic Control Features
- Antimicrobial coated controls reduce bacteria
- Integrated cooling coil
- Can be connected to external cooling unit
- Large selection of attachments to fit most vessels
- Automatic stop when hood is lifted
- Electronic timer
- Collecting tray with drain hose on rear of unit
- Error code display
- RS 232 and USB Port connections
- LED Display
- Can be controlled with labworldsoft®
- 115v or 230v
- 2 + 1 Year Warranty with Registration
KS 3000 ic Control Incubator Specifications
| Type of Movement | orbital |
| Shaker diameter | 20 mm |
| Permissible shaking weight (incl. attachment) | 7.5 kg |
| Motor rating input | 45 W |
| Motor rating output | 10 W |
| Permissible ON time | 100 % |
| Speed min (adjustable) | 10 rpm |
| Speed range | 10 - 500 rpm |
| Speed display | LED |
| Speed deviation | 1 % |
| Speed control | 1 RPM steps |
| Timer | yes |
| Timer display | 7 segment LED |
| Setting time min. | 1 s |
| Time setting range | 1 - 59940 min |
| Operating mode | timer and continuous operation |
| Touch function | no |
| Shaking table lock | no |
| Working with microtiter plates | no |
| Heating temperature range | room temp. +5° - 80 °C |
| Heat output | 1000 W |
| Heat control accuracy | 0.1 ±K |
| Control accuracy with sensor (1 vessel 0.5 L H2O, RT 22°C, T=37°C) | 466 ±K |
| Temperature display | yes |
| Temperature range (inlet T>3°C) | room temp. - 10° - 80° °C |
| connections for external cooling | yes |
| embedded cooling coil | yes |
| embedded cooling unit | no |
| Operating area inner chamber | 330 x 330 x 258 mm |
| Total volume inner chamber | 50 l |
| Raw material housing | Sheet metal powder coat |
| Raw material hood | PMMA |
| Raw material front foil | polyester |
| Raw material front panel | ABS painted |
| Temperature stability (1 vessel 0.5 L, RT 25°C, T=37°C) | 0.05 ±K |
| Temperature homogenity (5 vessel 0.5 L; RT 25°C, T=37°C) | 0.5 ±K |
| Height with open hood | 875 mm |
| Dimensions (W x H x D) | 465 x 430 x 695 mm |
| Weight | 37 kg |
| Permissible ambient temperature | 15 - 32 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 230 / 115 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 1120 W |
