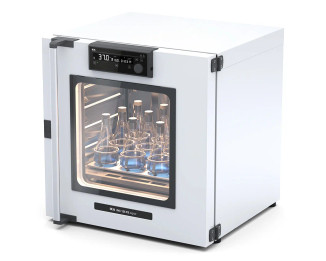

The IKA INC 125 FS digital is the first incubator shaker with a patented removable shaker platform. Without the platform, the unit can be used like a normal incubator. The large inner chamber with a volume of 125 liters offers space for up to 6 grid shelves (without shaker platform). Thanks to high temperature stability and a uniform shaking motion that improves oxygenation, the incubator shaker is the perfect solution for cell cultivation and other microbiological applications.
Shaker Features
- Patented removable shaker platform
- High shaking speed up to 300 rpm wth 20mm shaking stroke
- Shaker platform can be pulled out halfway (with line indicator) for tilt-proof loading
- Threaded grid on platform allows mounting of fixing clips or STICKMAX adhesive mat for different vessel sizes
- Automatic detection of shaker platform allows automatic temperature adjustment in decontamination mode
- Shaking function stops automatically when door is opened
- Shaking and temperature control can be used independently
Incubator Features
- Easy-to-clean chamber with rounded corners and flat surfaces made from corrosion-resistant material, AISI 304
- Optional drip pan provides additional safety in case of liquid overflow or can be used as reservoir to increase humidity
- Decontamination mode for disinfection and reduction of cross-contamination (100/120°C)
- Wide temperature range: RT +8°C to 80 °C
- Insulated inner chamber and triple-glazed door provides excellent temperature management and optimized energy consumption
- Internal air circulation electronically adjustable, fan speed (0-100%)
- Large LCD display
- Counter, timer and timer auto (temperature-controlled) function to ensure reproducible test conditions
- Up to two devices can be stacked (with additional accessories)
Included
- INC 125 FS digital incubator shaker
- Shaker platform SP20 (20mm shaking motion)
- IO T 2.10 wire grid tray, chrome plates
- Tilt protection (2 pieces)
- USB A-B cable
- Calibration certificate at 37°C
3 year manufacturer's warranty with product registration (2 year standard)
- Heat Output:
- 750 W
- Temperature Range:
- Room temp. +8 - 100 °C
- Adjustment and Display Resolution:
- 0.1 K
- Temperature Stability (37°C @22°C):
- ±0.1 K
- Temperature Homogeneity (37°C @22°C):
- ±0.2 K
- Temperature Heat Up Time (37°C @22°C):
- 12 min
- Temperature Door Recovery (37°C @22°C):
- 2 min
- Display:
- LCD
- Temperature Display:
- Yes
- Timer:
- Yes
- Maximum Time Setting:
- 100 d
- Maximum Number of Trays:
- 6
- Maximum Tray Load:
- 20 kg per tray
- Inner Chamber Dimensions:
- 550 x 550 x 415 mm
- Inner Chamber Volume:
- 125 l
- Air Outlet Port Diameter Inside:
- 48 mm
- Thermal Safety Devices DIN 12880:
- TB class 1
- Set-point Limiter with Safety Shutdown:
- Yes
- Inner Glass Door:
- Yes
- Temperature Sensor Control:
- PT 100 4 wire
- Shaking Stroke:
- 20 mm
- Shaking Speed Range:
- 10 - 300 rpm
- Shaking Speed Deviation:
- ±5 rpm
- Permissible Shaking Weight:
- 7.5 kg
- Set-up Plate Dimensions:
- 340 x 480 mm
- Thermal Decontamination (120°C):
- Yes
- Protection Class DIN EN 60529:
- IP 20
- USB Interface:
- Yes
- Power:
- 100 - 120 V, 50/60 Hz
- Power Input:
- 800 W
- Working Environment:
- 15-32 °C, Relative humidity 80 %
- Dimensions (W x H x D):
- 700 x 720 x 635 mm
- Weight:
- 70 kg
- Manufacturer:
- IKA
- Model:
- INC 125 FS Digital SP20
- Item No.:
- 20117222
- Product Type:
- Incubator Shaker
